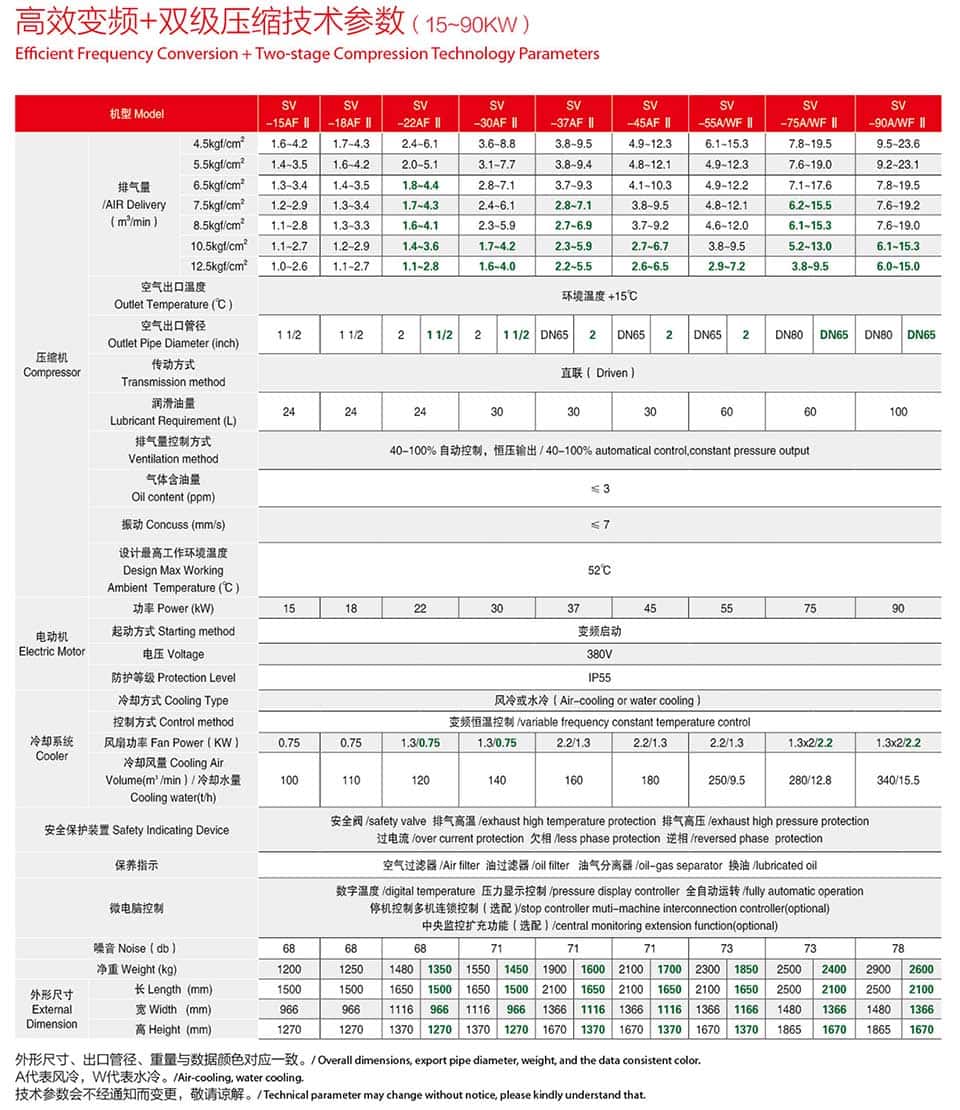

高效變頻雙級壓縮技術參數（22~90kw）
| 機型Machine Model | SVF-22A Ⅱ | SVF-30A Ⅱ | SVF-37A Ⅱ | SVF-45A Ⅱ | SVF-55A Ⅱ | SVF-75A Ⅱ | SVF-90A Ⅱ | |||
|
壓縮機 Compressor |
排氣量 AIR Delivery （m³/min） |
4.5kgf/cm2 | 2.5~6.2 | 3.7~9.2 | 4.0~9.9 | 5.1~12.7 | 6.4~15.9 | 8.0~20.0 | 9.7~24.2 | |
| 5.5kgf/cm2 | 2.0~5.1 | 3.2~8.0 | 3.7~9.2 | 4.8~12.1 | 5.1~12.8 | 7.9~19.7 | 9.6~23.9 | |||
| 6.5kgf/cm2 | 1.9`4.7 | 2.9~7.2 | 3.6~9.1 | 4.0~10.1 | 5.1~12.7 | 7.4~18.4 | 9.4~23.5 | |||
| 7.5kgf/cm2 | 1.8~4.5 | 2.5~6.2 | 2.9~7.2 | 3.9~9.8 | 5.0~12.6 | 2.4~16.1 | 8.0~20.0 | |||
| 8.5kgf/cm2 | 1.7~4.3 | 2.4~6.1 | 2.8~7.1 | 3.8~9.6 | 4.5~11.3 | 6.4~16.0 | 7.9~19.7 | |||
| 10.5kgf/cm2 | 1.4~3.6 | 1.9~4.7 | 2.4~6.1 | 2.8~7.0 | 3.9~9.8 | 5.4~13.4 | 6.3~15.8 | |||
| 12.5kgf/cm2 | 1.4~3.4 | 1.7~4.3 | 2.2~5.6 | 2.7~6.8 | 3.0~7.4 | 4.0~9.9 | 6.2~15.5 | |||
|
空氣出口溫度 Outlet Temperature (℃ ) |
環境溫度+15℃ | |||||||||
|
空氣出口管徑 Outlet Pipe Diameter (inch) |
1 1/4 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 2 1/2 | DN80 | |||
|
傳動方式 Transmission Method |
直聯（ Driven） | |||||||||
|
潤滑油量 Lubricant Requirement (L) |
24 | 30 | 30 | 30 | 60 | 60 | 100 | |||
|
排氣量控制方式 Ventilation Method |
0-100% 自動控制，恒壓輸出/0-100% automatical control,constant pressure output | |||||||||
| 氣體含油量Oil Content (ppm) | ≤ 3 | |||||||||
| 振動Concuss (mm/s) | ≤ 7 | |||||||||
|
最高工作環境溫度Max Working Ambient Temperature (℃ ) |
45℃ | |||||||||
|
電動機 Electric Motor |
功率Power (kW) | 22 | 30 | 37 | 45 | 55 | 75 | 90 | ||
| 啟動方式Starting Method | 變頻啟動 | |||||||||
| 電壓/頻率Voltage/ Frequency | 380V/50HZ | |||||||||
| 防護等級Protection Level | IP54 | |||||||||
|
冷卻系統 Cooler |
冷卻方式Cooling Type | 風冷或水冷 Air cooling or water cooling | ||||||||
| 控制方式Control Method | 變頻恒溫控制/variable frequency constant temperature control | |||||||||
| 風扇功率 Fan Power（KW） | 0.75 | 0.75 | 1.3 | 1.3 | 2.2 | 2.2 | 1.5×2 | |||
|
冷卻風量 Cooling Air Volume（m3/min） |
120 | 120 | 140 | 140 | 170 | 230 | 280 | |||
| 安全保護裝置Safety Indicating Device |
安全閥/safety valve 排氣高溫/exhaust high temperature protection 排氣高壓/exhaust high pressure protection 過電流/over current protection 欠相/less phase protection 逆相/reversed phase protection |
|||||||||
| 保養指示 | 空氣過濾器/Air filter 油過濾器/oil filter 油氣分離器/oil-gas separator 換油/lubricated oil | |||||||||
| 微電腦控制 |
數字溫度/digital temperature 壓力顯示控制/pressure display controller 全自動運轉/fully automatic operation 停機控制多機連鎖控制（選配)/stop controller muti-machine interconnection controller(optional) 中央監控擴充功能（選配）/central monitoring extension function(optional) |
|||||||||
| 噪音Noise（db） | 68 | 71 | 71 | 71 | 73 | 73 | 78 | |||
| 凈重Weight (kg) | 1150 | 1500 | 1500 | 1600 | 2200 | 2300 | 2450 | |||
|
外形尺寸 External Dimension |
長Length (mm) | 1500 | 1650 | 1650 | 1650 | 2100 | 2100 | 2800 | ||
| 寬Width (mm) | 850 | 1000 | 1000 | 1000 | 1300 | 1300 | 1500 | |||
| 高Height (mm) | 1220 | 1370 | 1370 | 1370 | 1670 | 1670 | 1900 | |||

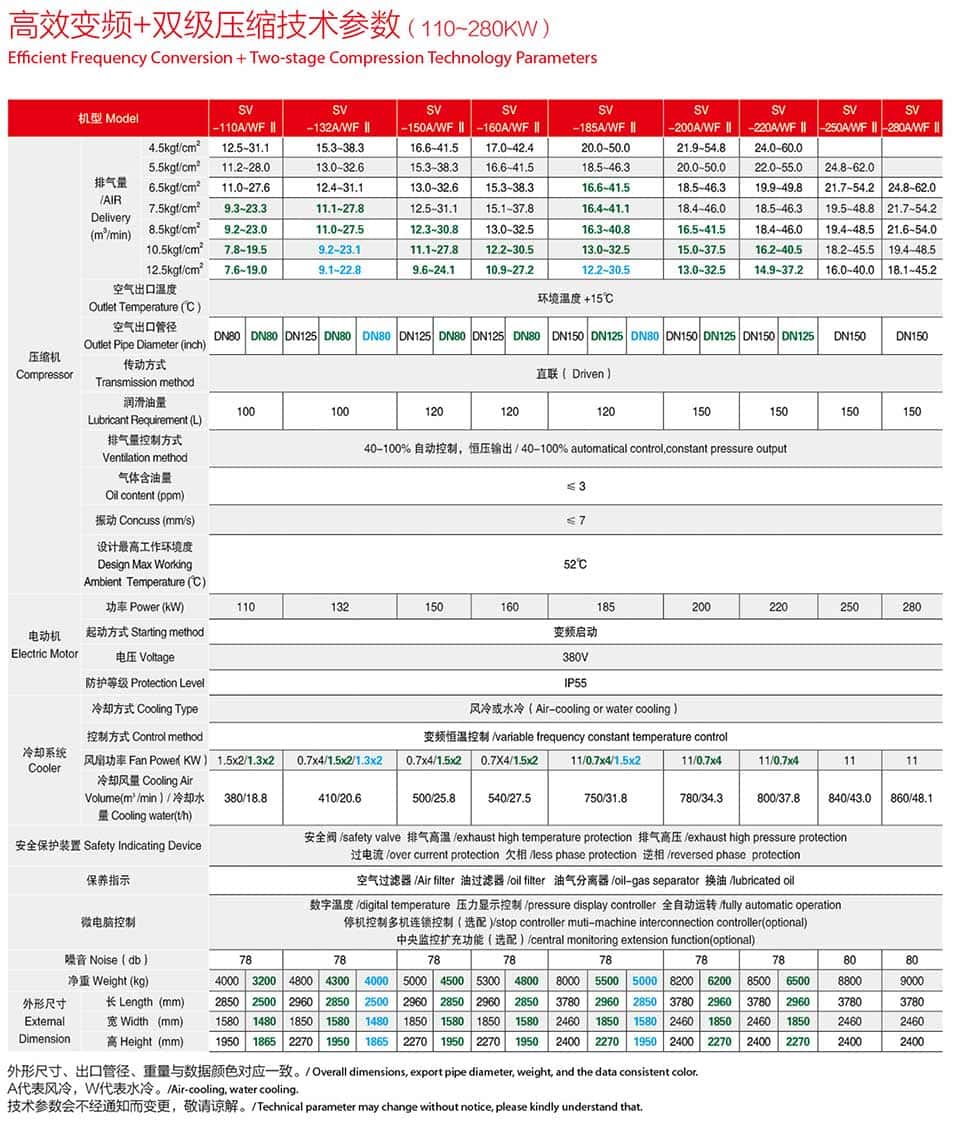

| 機型Machine Model | SVF-110A/W Ⅱ | SVF-130A/W Ⅱ | SVF-160A/W Ⅱ | SVF-185A/W Ⅱ | SVF-200A/W Ⅱ | SVF-220A/W Ⅱ | SVF-250A/W Ⅱ | |||
|
壓縮機 Compressor |
排氣量 AIR Delivery （m³/min） |
4.5kgf/cm2 | 12.8~32.0 | 15.3~38.3 | 17.0~42.4 | 20.0~50.0 | 22.0~55.0 | 24.0~60.0 | 25.6~64.0 | |
| 5.5kgf/cm2 | 11.8~29.5 | 13.2~33.0 | 16.8~42.0 | 18.7~46.7 | 20.2~50.6 | 23.4~58.6 | 15.2~63.0 | |||
| 6.5kgf/cm2 | 10.9~27.3 | 12.6~31.5 | 15.3~38.3 | 17.9~44.9 | 18.4~46.0 | 21.2~53.1 | 23.4~58.6 | |||
| 7.5kgf/cm2 | 9.8~24.5 | 11.2~28.1 | 13.2~33.0 | 17.2~43.0 | 18.0~45.0 | 19.2~47.9 | 21.2~53.1 | |||
| 8.5kgf/cm2 | 9.7~24.2 | 10.6~26.4 | 12.6~31.5 | 16.8~42.0 | 17.1~42.8 | 18.6~46.5 | 21.0~52.8 | |||
| 10.5kgf/cm2 | 8.0~20.0 | 9.6~23.9 | 11.3~28.3 | 13.4~33.4 | 16.0~40.0 | 16.6~41.5 | 19.2~47.8 | |||
| 12.5kgf/cm2 | 7.0~17.6 | 7.8~19.4 | 9.7~24.2 | 12.8~32.1 | 14.4~36.0 | 13.3~33.2 | 16.5~42.0 | |||
|
空氣出口溫度 Outlet Temperature (℃ ) |
環境溫度+15℃ | |||||||||
|
空氣出口管徑 Outlet Pipe Diameter (inch) |
DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | DN125 | |||
|
傳動方式 Transmission Method |
直聯（ Driven） | |||||||||
|
潤滑油量 Lubricant Requirement (L) |
100 | 100 | 120 | 120 | 150 | 150 | 150 | |||
|
排氣量控制方式 Ventilation Method |
0-100% 自動控制，恒壓輸出/0-100% automatical control,constant pressure output | |||||||||
| 氣體含油量Oil Content (ppm) | ≤ 3 | |||||||||
| 振動Concuss (mm/s) | ≤ 7 | |||||||||
|
最高工作環境溫度Max Working Ambient Temperature (℃ ) |
45℃ | |||||||||
|
電動機 Electric Motor |
功率Power (kW) | 110 | 132 | 160 | 185 | 200 | 220 | 250 | ||
| 啟動方式Starting Method | 變頻啟動 | |||||||||
| 電壓/頻率Voltage/ Frequency | 380V/50HZ | |||||||||
| 防護等級Protection Level | IP54 | |||||||||
|
冷卻系統 Cooler |
冷卻方式Cooling Type | 風冷或水冷 Air cooling or water cooling | ||||||||
| 控制方式Control Method | 變頻恒溫控制/variable frequency constant temperature control | |||||||||
| 風扇功率 Fan Power（KW） | 1.5×2 | 1.5×2 | 1.5×2 | 2.2×2 | 2.2×2 | 2.2×2 | 1.5×4 | |||
|
冷卻風量 Cooling Air Volume（m3/min） |
340/18.8 | 410/22.8 | 500/27.5 | 700/31.8 | 800/34.3 | 800/37.8 | 900/43.0 | |||
| 安全保護裝置Safety Indicating Device |
安全閥/safety valve 排氣高溫/exhaust high temperature protection 排氣高壓/exhaust high pressure protection 過電流/over current protection 欠相/less phase protection 逆相/reversed phase protection |
|||||||||
| 保養指示 | 空氣過濾器/Air filter 油過濾器/oil filter 油氣分離器/oil-gas separator 換油/lubricated oil | |||||||||
| 微電腦控制 |
數字溫度/digital temperature 壓力顯示控制/pressure display controller 全自動運轉/fully automatic operation 停機控制多機連鎖控制（選配)/stop controller muti-machine interconnection controller(optional) 中央監控擴充功能（選配）/central monitoring extension function(optional) |
|||||||||
| 噪音Noise（db） | 78 | 78 | 78 | 78 | 78 | 78 | 80 | |||
| 凈重Weight (kg) | 3300 | 3400 | 3650 | 6900 | 7000 | 7200 | 7600 | |||
|
外形尺寸 External Dimension |
長Length (mm) | 2800 | 2800 | 3000 | 3000 | 3400 | 3400 | 3400 | ||
| 寬Width (mm) | 1500 | 1500 | 1700 | 1700 | 2000 | 2000 | 2000 | |||
| 高Height (mm) | 1900 | 1900 | 2260 | 2260 | 2300 | 2300 | 2300 | |||
|
永磁變頻雙級壓縮空壓機工作原理 自然空氣通過空氣過濾器進入第一級壓縮，在壓縮腔與少量潤滑油混合，同時將混 合氣體壓縮到級間壓力。壓縮后的氣體進入冷卻通道，與大量油霧接觸，從而大大 降低了溫度。降溫后的壓縮氣體進入第二級轉子，進行二次壓縮，被壓縮到最終排 氣壓力。最后通過排氣法蘭排出壓縮機，完成整個壓縮過程。 |
 |

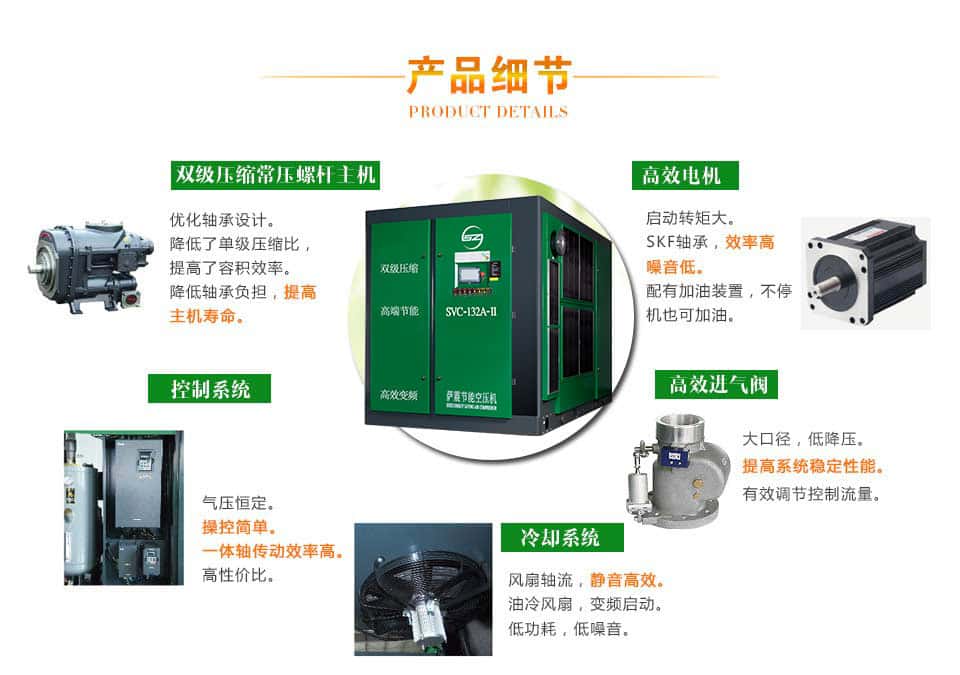

采用德國薩震節能空壓機主機，無振動，低噪音，大轉子，低轉速，強大的心臟決定了整機的優異性能。轉子經嚴格的動, 靜平衡試驗, 使其運轉平衡更好, 振動更小, 噪聲更低，同時在直徑不變的情況下，轉子長度增加，有效壓縮面積增加，從而達到流量增加，功耗降低。
